Rail Hinge Plans with Pivots & Hardware Bundle

This is a pair of rail hinge pivots with associated hardware for use with the bundled DIY Birch Ply Rail Hinge plans with step-by-step build video. The plans are a Digital download (PDF) that will be emailed to the address you provide at checkout.

The hinge pivots are the most fiddly part of this build, because they need to be drilled precisely, and identically, and these parts have been precision machined to very high tolerances in quality 12mm Birch plywood.

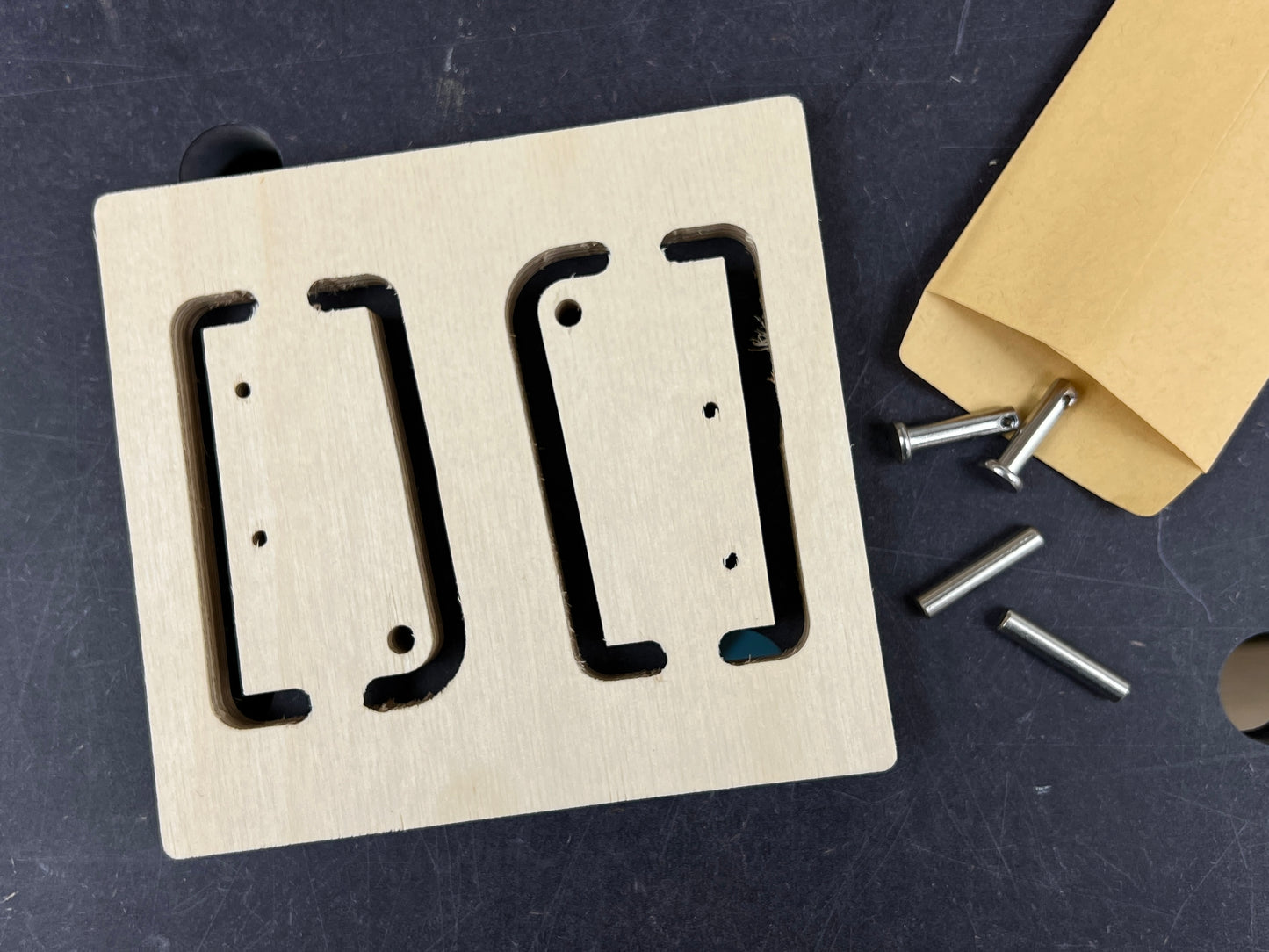

You will receive a pair of pivots arranged on a tile, held in place with tabs, and you'll need to cut these away and give them a light sanding.

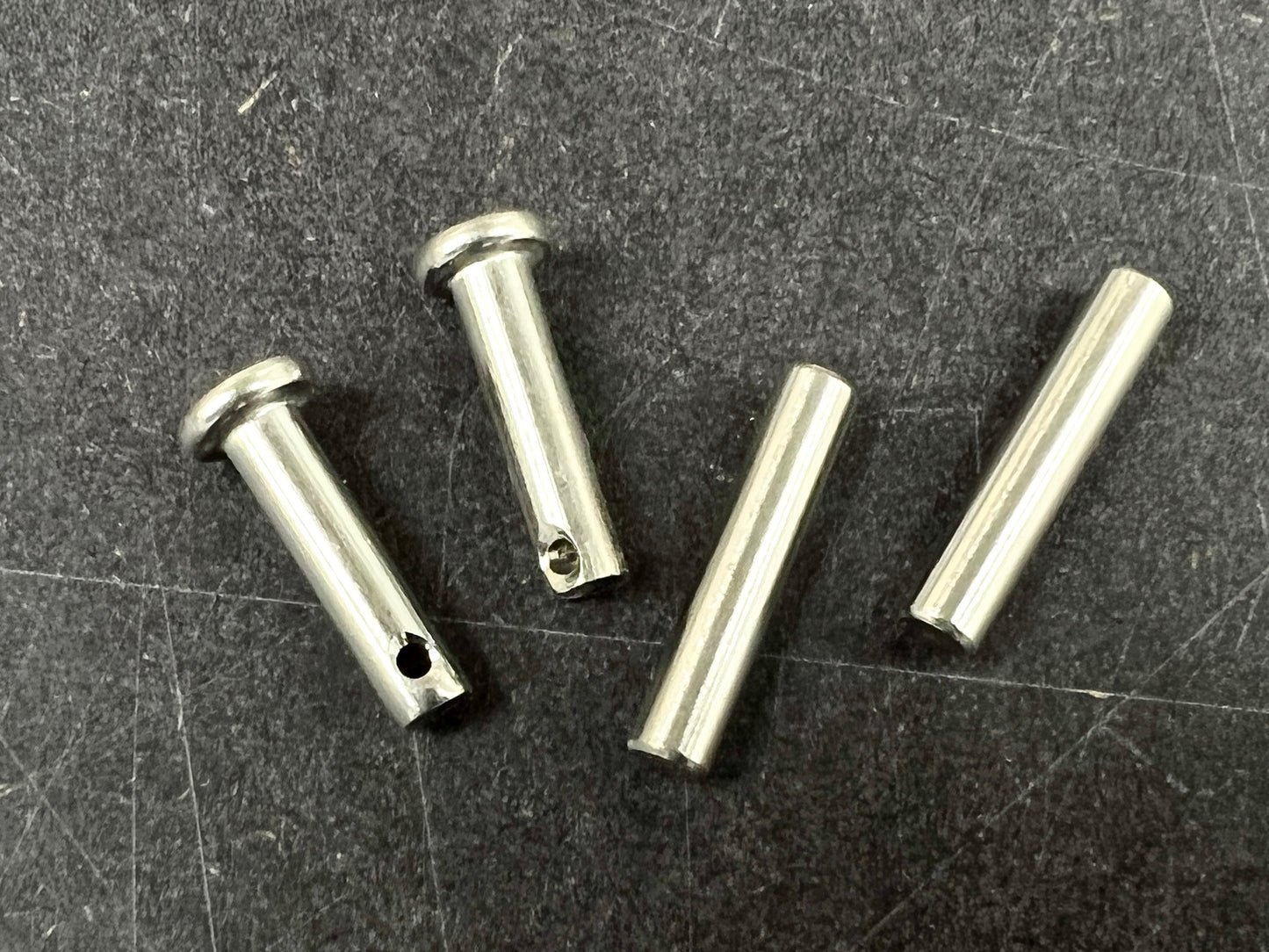

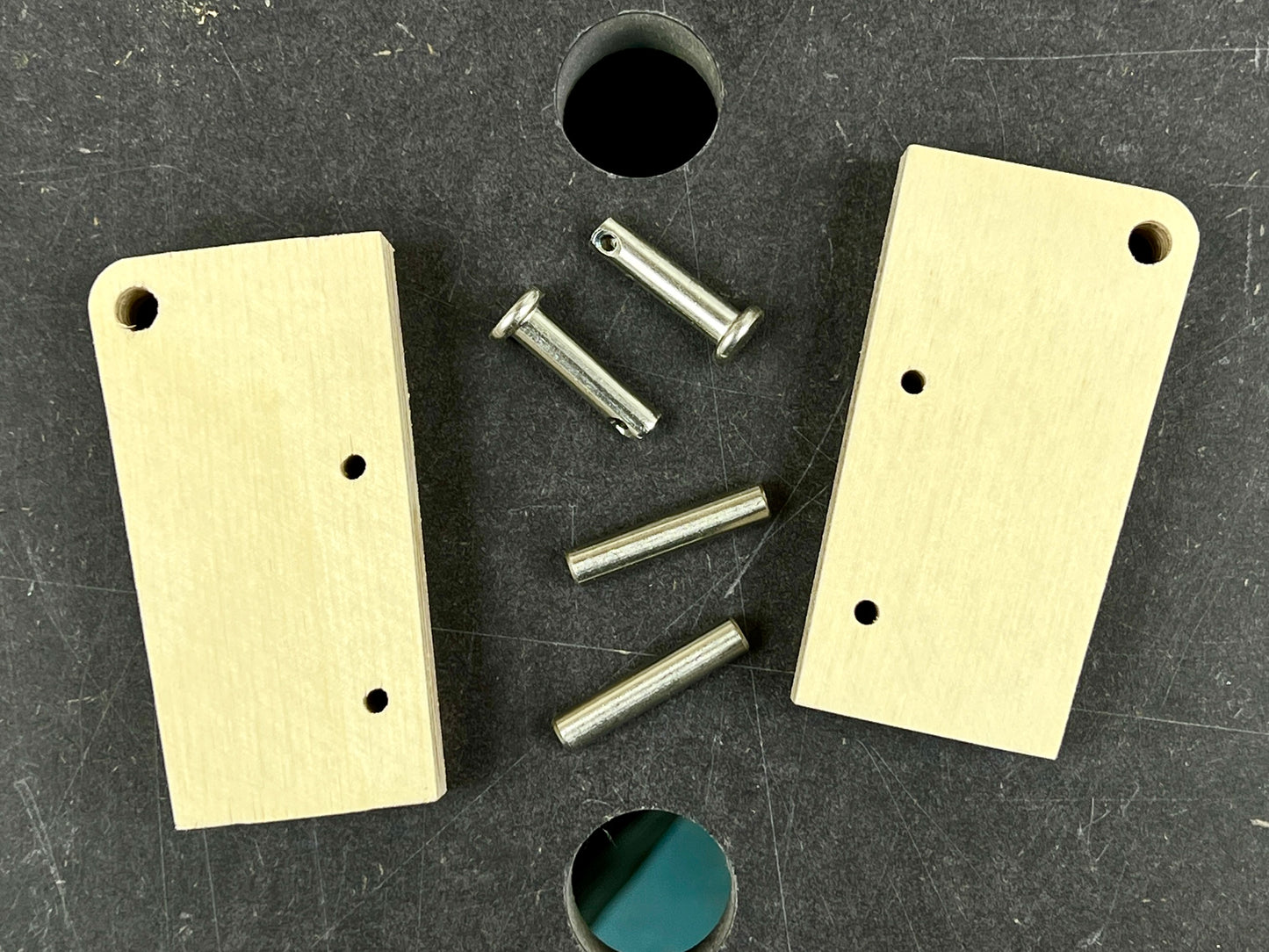

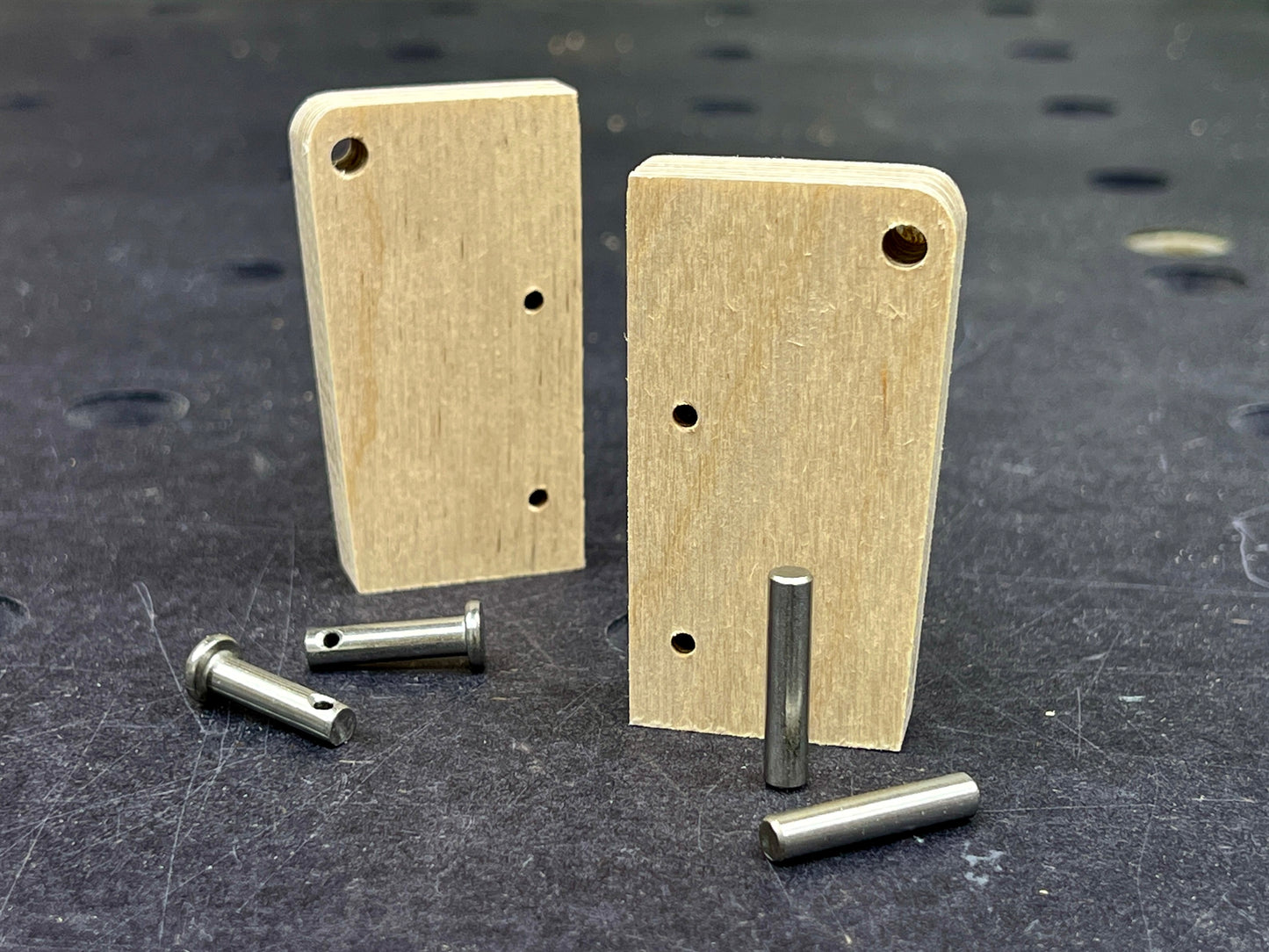

The pivots come pre-drilled with 3mm holes for fixing onto the hinge riser, and a 5mm hole for the steel dowel pin. A pair of 5mm dowel pins is included in the package, together with a pair of 5mm clevis pins that are used for (optional) height adjustment/locking; you will only need one clevis pin - the other is a spare.

Shipping is by Royal Mail 48hr tracked (domestic UK orders) or International Tracked (international orders) and there'll be a tracking number added to the listing when the label is printed; tracking becomes active when the package is in the system - usually the next working day.

My apologies for the high cost of international shipping - nothing we can do about that, unfortunately, even for such a small item. Any questions, just ask.

Thank you! Peter

www.10.minuteworkshop.tv

DIY Rail hinge plans

DIY Rail Hinge video - https://youtu.be/sHj5G6t1qvY

DIY MFT hardware video - https://youtu.be/za5B-XrSuH0

DIY MFT build video - https://youtu.be/223QALIbnRc
